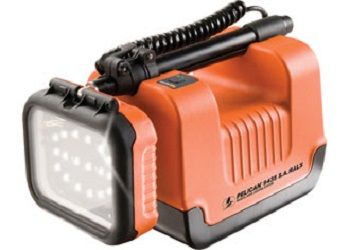

Peli 9435 Yanıcı ve Patlayıcı Ortam Atex Exproof Uzak Alan Aydınlatma Sistemi
Pelican builds the most safety approved handheld lights in the U.S. market. Now with the release of new 9435, we produce the world?s only battery powered safety approved remote area light. It's 1500 lumens illuminate hazardous locations, and with two power settings the 9435 extends burn time up to 10 hrs. of clean even light.
At Pelican, designing a lighting system that?s safe to use in volatile situations isn?t optional. It?s fundamental to our philosophy.
Light Source | ||
LED Type | LED Life | Tested Lumen Value |
High Flux LED | 50000 hrs. | 750 (Low) 1500 (High) |
Lamp Heads | Number of LEDs |
Beam Spread |
1 | 18 LEDs per head | 90° |
Brightness Settings |
IP Rating (Ingress Protection) |
|
2 | IP54 | |
Power Source | ||
Battery Type | Battery Burn Time |
Battery Charging Time |
NiMH | 10 hrs. (Low) 5 hrs. (High) |
8 hrs. from full discharge |
Battery Life | Low Battery Warning | 12V Primary Sockets |
300 cycles | Intermittent Blinking | 1 |
12V Auxiliary Sockets |
Watts | Voltage |
0 | 18 | 12 |
Dimensions & Weight | ||
Head Length | Head Width | Head Depth |
6.5" (16.5 cm) | 7.87" (20 cm) | 2.56" (6.5 cm) |
Width Closed | Length Closed | Height Closed |
7.87" (20 cm) | 15.75" (40 cm) | 9.06" (23 cm) |
Mast Height Extended |
Cord Length (Retracted) |
Weight |
32.28" 0" (82 cm) (0 cm) | 13.78" 0" (35 cm) (0 cm) | 17.6 lbs. (7.98 kg) |
Approvals | ||
IECEx ITS10.0011 Ex ic IIC T4 Gc | ||
Approved | ||
Certificate | Yes | |
Atex Approval | II 3 G Ex ic IIC T4 Gc | |
Atex Certificate | ITS09ATEX26777 | |
RoHS (Restriction of Hazardous Substances) Compliant | Approved | |
Class I Division 2 Groups ABCD T4 |
